From the compact DM-100 to the DMB-1000. Tell us the roof type and quantity and we will reply with the matching model, unit price and lead time.
A ventilator draws out harmful gas and dust to protect workers, and controls temperature and humidity to remove odour. Wherever there is a working space, it is not optional.
Our centrifugal wind-driven ventilator combines a sealed bearing with wide corrugated blades, so it turns smoothly even in a very light breeze. The rotation transfers to the built-in fixed bearing, exhausting air without wobble or noise.
From 100mm compact units to 1,500mm gravity exhausters. Choose by roof profile and required airflow.
DM-100 · 150 · 200 and DMB-300 · 450 · 600 shown to scale
Unit: mm · 100% handmade · MADE IN KOREA

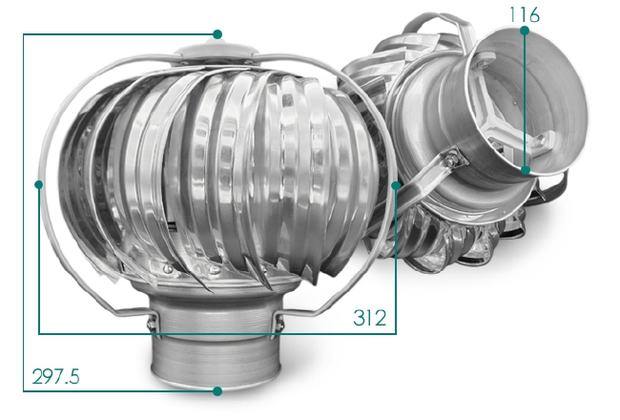

| Model | Overall height | Overall dia. | Base dia. |
|---|---|---|---|
| DM-100 | 297.5 | 312 | 116 |

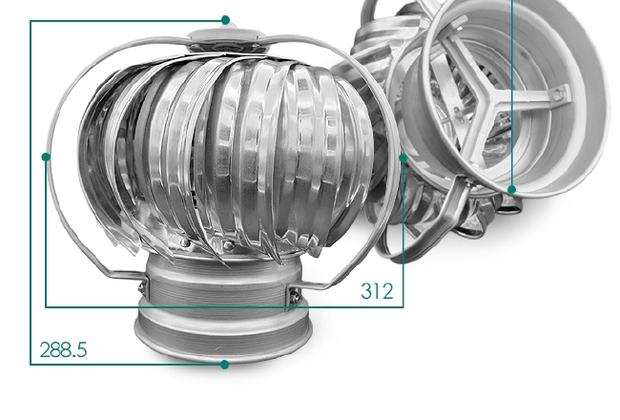

| DM-150 | 288.5 | 312 | 167 |

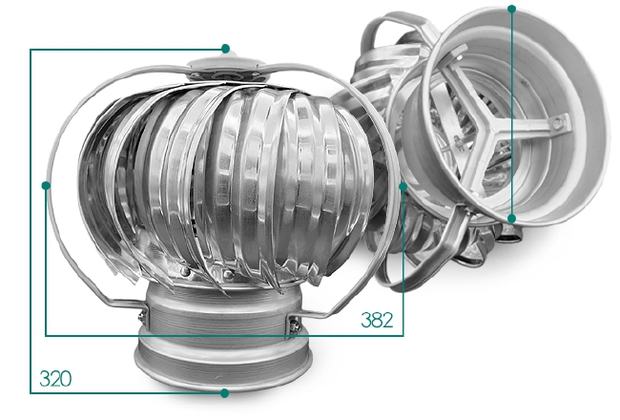

| DM-200 | 320 | 382 | 220 |
Small but strong
Best seller
Mid-size
Unit: mm · Sloped roofs are built with a custom base
| Model | Top dia. | Base (W × D) |
|---|---|---|

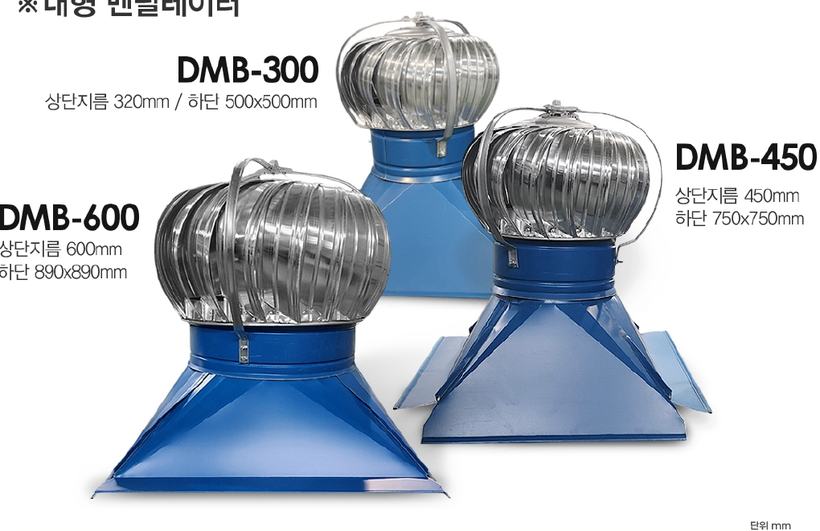

| DMB-300 | 300 | 500 × 500 |
| DMB-450 | 450 | 750 × 750 |
| DMB-600 | 600 | 890 × 890 |
| DMB-750 | 750 | 1,020 × 1,020 |
| DMB-900 | 900 | 1,200 × 1,200 |
| DMB-1000 | 1,000 | 1,300 × 1,300 |

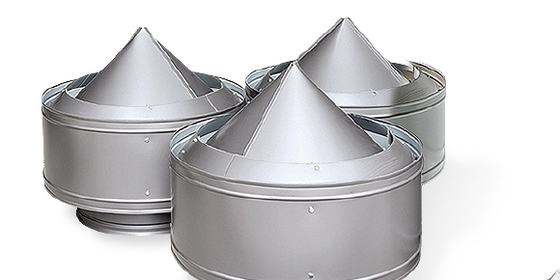

The most robust of the non-powered range, suited to harsh weather and to grain or fertiliser warehouses. Unit: mm
| Dia. (A) | B | C | D | E |
|---|---|---|---|---|
| Ø 450 | 680 | 680 | 750 | 350 |
| Ø 600 | 870 | 860 | 900 | 450 |
| Ø 750 | 1,060 | 1,050 | 1,050 | 500 |
| Ø 800 | 1,200 | 1,200 | 1,100 | 550 |
| Ø 900 | 1,230 | 1,250 | 1,200 | 600 |
| Ø 1,000 | 1,380 | 1,380 | 1,300 | 630 |
| Ø 1,200 | 1,620 | 1,640 | 1,500 | 780 |
| Ø 1,500 | 2,130 | 2,200 | 1,800 | 850 |

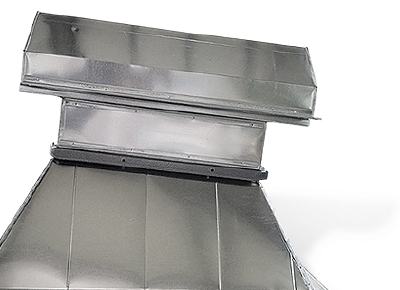

Built from 0.6t zinc-coated steel for plants with high heat or heavy dust, fitted with a 1HP three-phase motor.
Request a quotation by e-mailminniejeong7@gmail.comSpecial nickel plating over SUS-304 gives corrosion resistance and high strength at low temperature, protecting against salt and moisture.

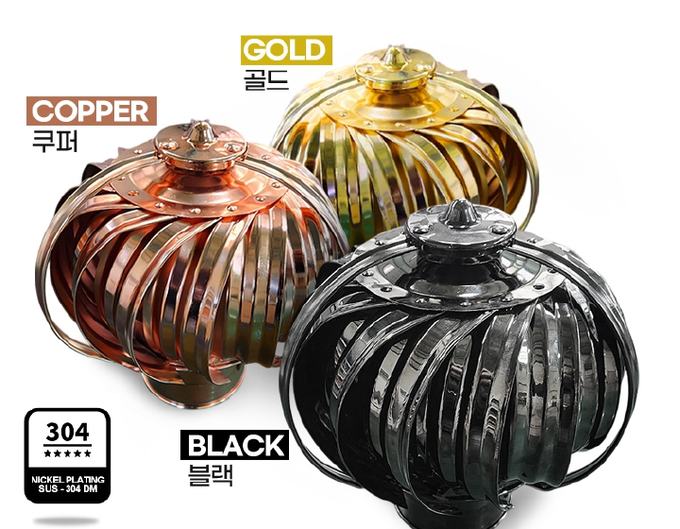

Three finishes in addition to standard stainless steel.
Blocks insects. Available as an option on the DM-100.
Exhausts kitchens and bathrooms in apartments and houses, and clears contaminated air from production plants while controlling humidity.

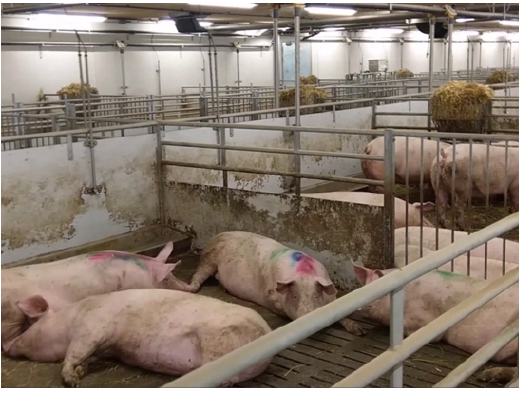

Removes and circulates contaminated air in warehouses and livestock barns. Running constantly without power, it clears odour from barns and kitchens.
We corrected the noise and weak extraction of conventional turbine ventilators. Unlike low-cost imports, ours are built for durability and long service.
No drawing required. One photo of the roof is usually enough.
· Unit price depends on model, material and quantity. Tell us the destination port or city and we will include freight terms in the reply.
Request a quotation by e-mailminniejeong7@gmail.comWe keep specification, quantity and price on record, so inquiries are handled by e-mail and fax.
Roof type, quantity and destination. A photo helps us answer faster.
We confirm the matching model and reply with unit price and lead time.
Quantity and shipping date are fixed. Non-standard sizes are scheduled with you.

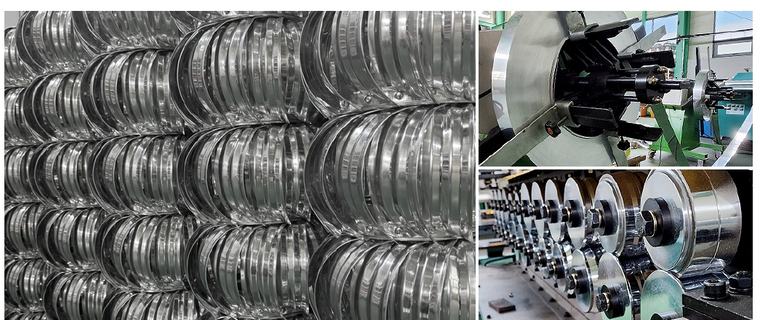

Handmade at our plant in Sihwa Industrial Complex and shipped from Korea.
No trading company in between. Production and shipping are handled directly from Sihwa Industrial Complex, Siheung, Republic of Korea.
| Company | DongMinVent |
|---|---|
| CEO | Kim Min-jeong |
| Address | Rm 630, 3-ra, 307 Gyeongje-ro, Siheung-si, Gyeonggi-do 15108, Republic of Korea (Sihwa Complex) |
| Business | Manufacture of ventilation equipment · Wholesale and retail · R&D |
| Business reg. no. | 580-52-00844 |
| Country of origin | Republic of Korea (MADE IN KOREA) |
| FAX | +82-503-8379-4897 |
| minniejeong7@gmail.com | |
| Business hours | 09:00–18:00 (KST, GMT+9) |

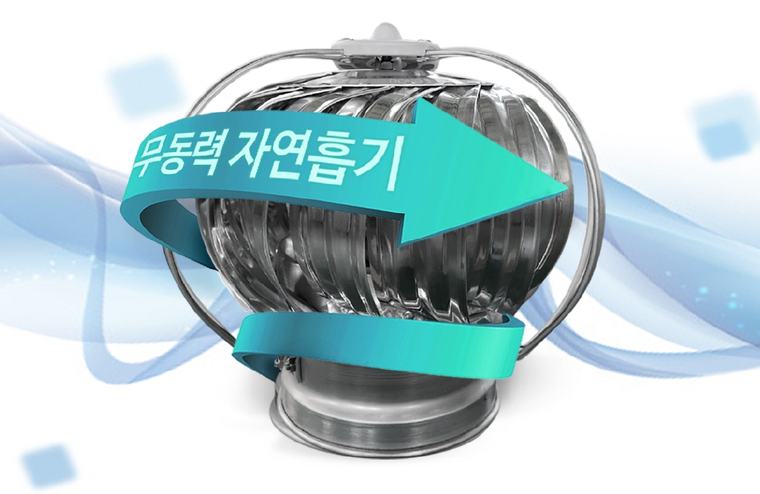

The turbine ventilator is driven by wind and the internal updraft, so it draws no power and needs no wiring. Where heat or dust is heavy and more airflow is required, we recommend combining it with powered roof fans.
Every unit is handmade in Korea. A sealed bearing keeps it turning smoothly and quietly in the lightest breeze, and zinc and nickel plating give it a far longer service life.
Send one photo of the roof with the building use and approximate area, and we will select the model. Sloped roofs are supplied with a custom base.
Yes. Volume supply to contractors and mechanical installers is our main business. Send the expected quantity and we will quote a separate unit price.
We will come back with the model, unit price and lead time.
